Vacuum furnace and muffle furnace are two different types of industrial furnaces, which have significant differences in structure, working principle, performance characteristics, and application fields. Let's take a look at the specific differences between vacuum furnaces and muffle furnaces below!

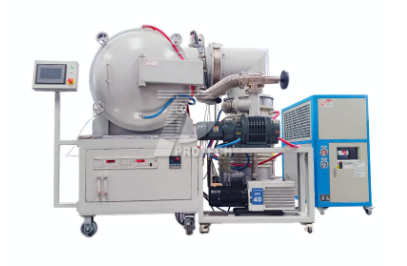

Commonly used vacuum furnaces (click on the image to view product details)

1. Structural differences
Vacuum furnace: It usually adopts a well sealed furnace structure, and the interior of the furnace can form an environment close to vacuum. Its design focuses on controlling the atmosphere inside the furnace and evenly distributing heat.
Muffle furnace: It adopts a box or vertical structure, and the heating area is located inside the furnace. The furnace has a large volume and is suitable for batch processing or heating of large samples.

2. Different working principles
Vacuum furnace: heated by electric heating elements in a near vacuum state. It works by extracting vacuum, creating a low-pressure environment with almost no air, and then using heating rods to heat the workpieces or materials inside the furnace, using the principle of oxygen free heat treatment.
Muffle furnace: mainly uses the heating principle of heating rods. There is a resistance wire, silicon carbon rod, or silicon molybdenum rod inside, which generates resistance heat through electricity. When the thermal field intersects with the heated metal workpiece or material, heat is generated, and under the action of the heat generated by the resistance, the metal workpiece is rapidly heated.

3. Performance characteristics
Vacuum furnace:
Fast heating rate and good temperature uniformity.
The atmosphere inside the furnace is controllable, which helps prevent sample oxidation and contamination.
High temperature control accuracy, suitable for processes with strict temperature requirements.

Muffle furnace:
The heating speed is relatively slow, but the temperature range is wider.
The furnace has a large volume and can accommodate more samples, making it suitable for batch processing.
The structure is simple, easy to maintain, and the price is relatively cheap compared to vacuum furnaces.

Commonly used muffle furnace (click on the image to view product details)

4. Application Fields
Vacuum furnace: mainly used in the fields of ceramic firing, vacuum smelting, and degassing annealing of electric vacuum parts. Due to its unique structure and performance characteristics, vacuum furnaces are widely used in processes that require high vacuum environments, such as material synthesis, ceramic sintering, and precision workpiece annealing.
Muffle furnace: It is widely used in fields such as metal melting, heat treatment, ashing analysis, etc. Especially in high-temperature carbonization treatment, nitriding treatment, etc., muffle furnace has great advantages. In addition, the muffle furnace can also be used to prepare various turning and cutting tools.

5. Safety and operational convenience
Vacuum furnace: usually equipped with more precise temperature control system and safety protection measures, such as overheating protection, overcurrent protection, etc., to ensure the safety of equipment and personnel. Meanwhile, its furnace tube structure also facilitates the insertion and removal of samples, making the operation relatively convenient.
Muffle furnace: During operation, attention should be paid to the cleanliness and maintenance of the furnace to ensure heating efficiency and furnace life. Its control methods often use touch screen control or button control, and the operation is relatively simple.

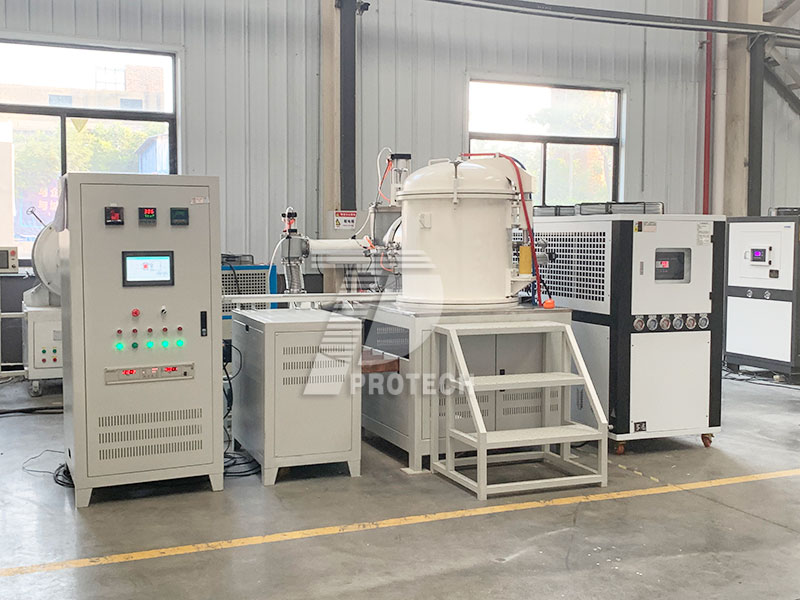

Customized vertical vacuum furnace (click on the image to view product details)

Overall, there are significant differences between vacuum furnaces and muffle furnaces in terms of structure, working principle, performance characteristics, and application fields. When choosing heating equipment, it is necessary to make a reasonable selection based on actual needs and process requirements.Click to learn more vacuum furnaces! Or click on online customer service to learn more about product information!
