When choosing a vacuum graphite furnace, multiple key factors need to be considered to ensure that the equipment can meet specific process requirements and improve production efficiency and product quality. Let's take a look at the precautions when choosing a vacuum graphite furnace below!

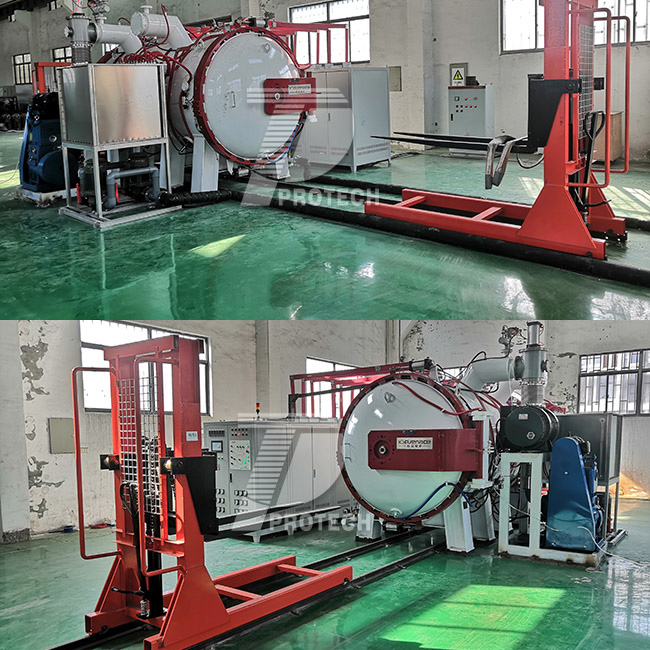

A commonly used vacuum graphite furnace (click on the image to view product details)

1. Furnace cavity material and structure
Material selection: Graphite material is a commonly used material for vacuum graphite furnace chambers due to its excellent high temperature resistance, thermal conductivity, and oxidation resistance. At the same time, the corrosion resistance of the material should also be considered to ensure that there will be no chemical reaction with the material during the sintering process.
Structural design: The structural design of the furnace chamber should facilitate loading and unloading of materials and daily maintenance. For example, using a bottom electric lifting structure can facilitate the movement and loading and unloading of materials.

2. Heating method and temperature control
Heating method: The common heating method is resistance heating. Resistance heating is suitable for long-term heating at high temperatures. Resistance heating has a fast heating rate and is more energy-efficient.
Temperature control: The control system should be able to accurately control parameters such as heating temperature, holding time, and vacuum degree. Common control systems include PID control, PLC control, etc. The precision of temperature control is crucial for sintering quality, therefore it is necessary to choose equipment with high-precision temperature control function.

3. Vacuum degree and atmosphere control
Vacuum degree: The vacuum degree of the vacuum graphite furnace is an important factor affecting the sintering quality. Usually, the vacuum degree needs to be below 10 ^ -3 Pa to meet the requirements of the sintering process. Therefore, it is necessary to choose equipment with high-performance vacuum pump sets to ensure the required vacuum degree is achieved.
Atmosphere control: In some processes, it is necessary to control the atmosphere inside the sintering furnace. For example, sintering is carried out under inert gas protection. Therefore, it is necessary to choose equipment with an atmosphere control system to meet specific process requirements.

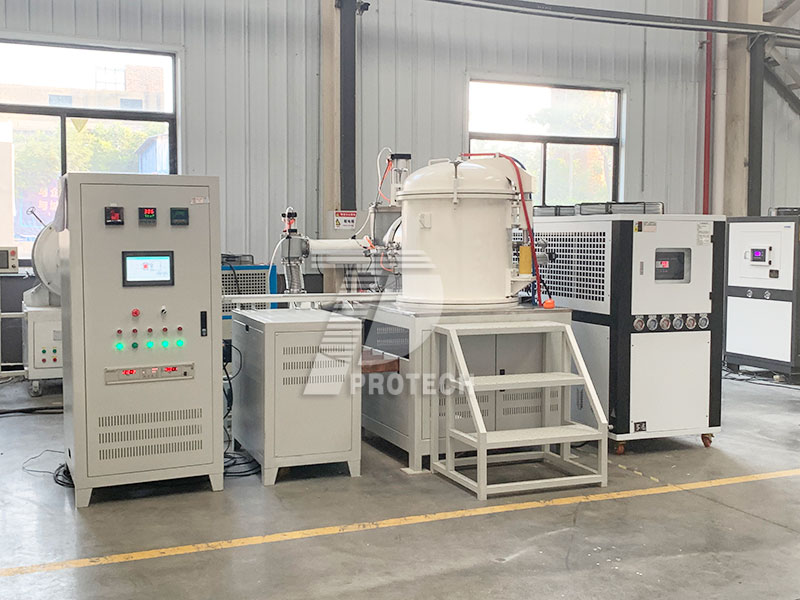

Vertical vacuum graphite furnace (click on the image to view product details)

4. Cooling method and water cooling system
Cooling method: The cooling method for vacuum graphite furnaces is generally water cooling. Water cooling methods usually have better cooling effects, but also need to consider the supply and discharge of cooling water.
Water cooling system: For equipment using water cooling, it is necessary to ensure the stability and reliability of the water cooling system to avoid equipment failures caused by poor cooling.

5. Other factors
Equipment size and loading capacity: Suitable equipment size and loading capacity should be selected according to production needs. Equipment sizes that are too large or too small may affect production efficiency and product quality.
Control system and automation level: The control system should have functions such as monitoring, fault display, and recording to ensure the stability and safety of the process. Meanwhile, equipment with higher levels of automation can reduce manual intervention and improve production efficiency.
Manufacturer reputation and after-sales service: Choosing a manufacturer with good reputation and high-quality after-sales service can ensure the reliability and long-term stable operation of the equipment.

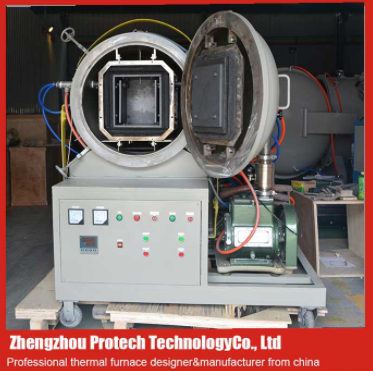

Industrial vacuum graphite furnace (click on the image to view product details)

In general, when choosing a vacuum graphite furnace, it is necessary to comprehensively consider multiple aspects such as furnace chamber material and structure, heating method and temperature control, vacuum degree and atmosphere control, cooling method and water cooling system, and other factors. By comprehensively evaluating these factors, a vacuum graphite furnace that is more suitable for one's own process needs can be selected.Click to learn more vacuum furnaces! Or click on online customer service to learn more about product information!
