Box type atmosphere furnace is widely used in the field of powder sintering and is one of the important equipment in powder metallurgy, ceramic manufacturing, new energy materials and other fields. Let's take a closer look at the application of box type atmosphere furnaces in the powder sintering industry!

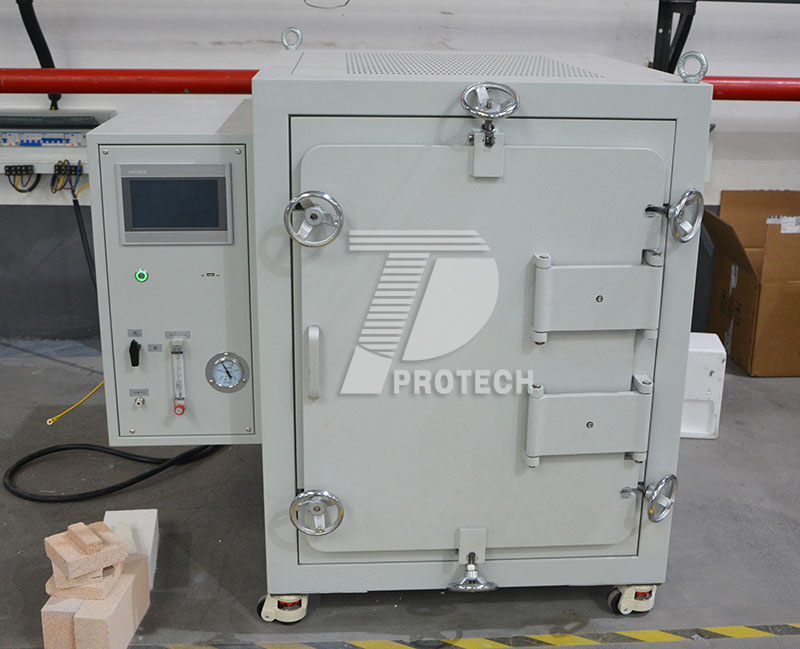

A commonly used small box type atmosphere furnace (click on the picture to view product details)

1. Powder metallurgy field
a. Metal powder sintering
Application Overview: In the powder metallurgy industry, box type atmosphere furnaces are used for sintering metal powders to prepare various metal and alloy components, such as gears, bearings, metal filters, etc. By accurately controlling the temperature, atmosphere, and holding time of the atmosphere furnace, the densification of metal powder can be achieved, and the density and mechanical properties of sintered parts can be improved.
Atmosphere control: The selection of atmosphere is crucial for the sintering results during the sintering process. For example, a nitrogen atmosphere is commonly used to avoid oxidation reactions and is suitable for sintering nitrides and certain metal materials; Hydrogen atmosphere is commonly used for the reduction sintering of metal materials, which helps to remove the oxide layer on the surface of metal powder and promote the densification of the metal.
Process advantages: The box type atmosphere furnace can provide uniform temperature distribution and precise atmosphere control, ensuring the stability and repeatability of the sintering process, thereby producing high-quality and high-performance sintered parts.

b. Hard alloy sintering
Application Overview: Hard alloys (such as tungsten steel) have high hardness and wear resistance, and are important materials in cutting tools, molds, mining tools, and other fields. The box type atmosphere furnace plays a significant role in the sintering process of hard alloys.
Sintering characteristics: During the sintering process, the atmosphere control system accurately controls the atmosphere inside the furnace, avoiding oxidation reactions of hard alloys at high temperatures and ensuring the quality and performance of the sintered parts.
Process optimization: By adjusting the sintering temperature, holding time, and atmosphere composition, the microstructure and mechanical properties of hard alloys can be optimized to meet the needs of different application fields.

2. Ceramic manufacturing field
a. High performance ceramic sintering
Application Overview: Box type atmosphere furnace has great advantages in the sintering process of high-performance ceramics such as oxide ceramics, nitride ceramics, etc. For example, high-performance ceramic materials such as silicon nitride, aluminum nitride, and aluminum oxide have excellent wear resistance, high temperature resistance, and mechanical properties, and are commonly used materials in aerospace, electronics, chemical, and other fields.
Atmosphere control: During the sintering process, by adjusting the atmosphere inside the furnace (such as nitrogen, hydrogen, etc.), the sintering reaction process of ceramic materials can be controlled, avoiding oxidation and ablation of materials at high temperatures, and improving the density and performance of ceramic products.
Product application: High performance ceramic products are widely used in cutting tools, wear-resistant parts, structural ceramics and other fields, with high requirements for sintering processes. The box type atmosphere furnace can meet these requirements and produce high-quality and high-performance ceramic products.

b. Preparation of ceramic glaze
Application Overview: Box type atmosphere furnaces can also be used for melting and reacting ceramic glazes, producing glazes with specific colors, gloss, and texture. In an atmosphere furnace, it is possible to accurately control the heating temperature and time of the glaze, as well as the composition of the atmosphere inside the furnace, thereby achieving control over the properties of the glaze.
Process advantages: The oxygen free and water free environment provided by the box type atmosphere furnace is conducive to the uniform melting and reaction of glaze, improving the quality and performance of glaze.

3. In the field of new energy materials
a. Preparation of lithium-ion battery materials
Application Overview: In the production process of lithium-ion battery materials, box type atmosphere furnaces are used for sintering and heat treatment of positive and negative electrode materials. By controlling the atmosphere and temperature during the sintering process, the conductivity and electrochemical properties of the material can be effectively improved.
Atmosphere control: During the sintering process, inert atmospheres (such as nitrogen, argon, etc.) or reducing atmospheres (such as hydrogen, etc.) are usually used to avoid oxidation and decomposition of materials at high temperatures.
Product application: High quality lithium-ion battery materials are important for improving the energy density, cycle life, and safety performance of batteries. The box type atmosphere furnace plays a significant role in the preparation process of lithium-ion battery materials.

4. Other application areas
Electronic component manufacturing: In the production process of electronic components, high-temperature treatment is required for semiconductor materials, ceramic materials, etc. Box type atmosphere furnace can provide precise temperature control and atmosphere protection, avoiding oxidation reactions on the surface of components and ensuring stable and reliable performance of components.
Aerospace field: In the aerospace field, the performance requirements for materials are very high. Box type atmosphere furnace can be used for heat treatment and preparation of aviation materials, such as high-temperature alloys, titanium alloys, composite materials, etc. Under specific atmospheric and temperature conditions, the microstructure of materials can be optimized to improve their mechanical properties and corrosion resistance.
New material research and development: In materials science research, box type atmosphere furnaces are commonly used for synthesizing new materials, studying the phase transition process of materials, and evaluating the properties of materials. By controlling the atmosphere and temperature, the preparation methods and properties of new materials can be explored, providing basic data and technical support for the development of new materials.

5. Advantages of Box type Atmosphere Furnace in Powder Sintering
Precise control: The box type atmosphere furnace is equipped with a good temperature control system and atmosphere control system, which can accurately control the temperature and atmosphere inside the furnace, ensuring the stability and repeatability of the sintering process.
Efficient and energy-saving: The furnace body is constructed with materials with high temperature resistance and insulation performance, effectively reducing heat loss and improving energy utilization efficiency.
Safe and reliable: The equipment is equipped with safety warning and emergency shutdown mechanisms. In the event of abnormal atmosphere, overheating, or other potential faults in the furnace, the system will immediately activate protective measures to ensure the safety of operators and equipment.
Flexible customization: We can provide non-standard designs according to customer needs to meet the sintering requirements of different materials and process conditions.

High box type atmosphere furnace (click on the picture to view product details)

Overall, box type atmosphere furnaces are widely used in the field of powder sintering, with advantages such as precise control, high efficiency and energy saving, safety and reliability, and flexible customization. With the continuous advancement of technology and the increasing industrial demand, the application prospects of box type atmosphere furnaces in the field of powder sintering will be even broader.Click to learn more atmosphere furnaces! Or click on online customer service to learn more about product information!
