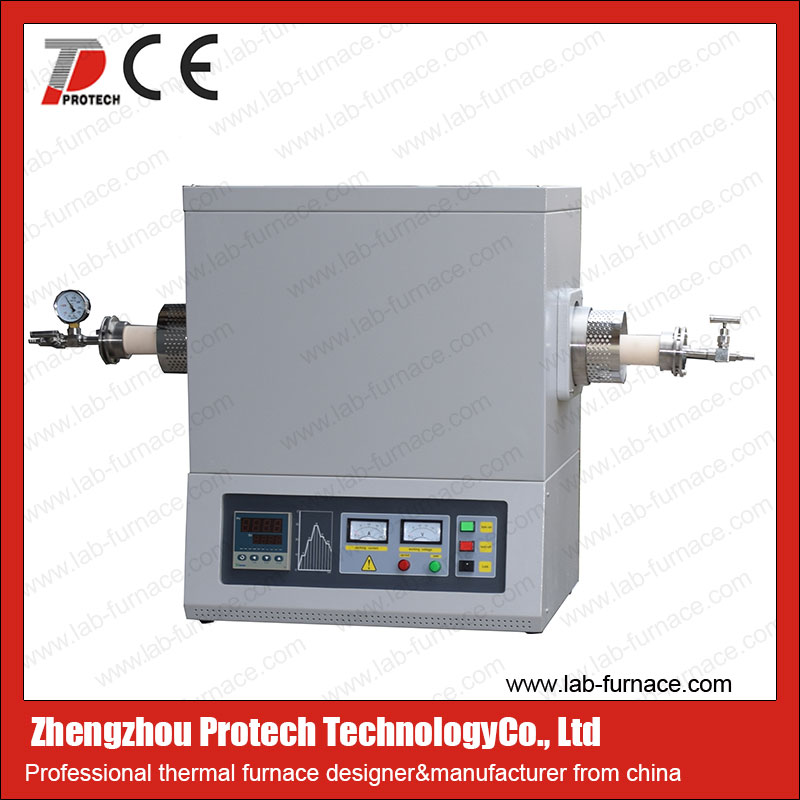

1800C Tube furnace
Lab tube furnace temperature up to 1800C for sintering lab
Model£ºPT-1800T
Description£ºLab tube furnace temperature up to 1800C is mainly used in the research requiring high temperature and high pressure and the hi-temperature and hi-pressure can be accurately controlled. It is widely used in synthesis of the new material and quick sintering of the workpiece, such as, Piezoelectric ceramics, superconducting materials, magnetic materials, ferroelectric superhard materials.
(1).Mulit Segment Easy Use PID Programmable Temperature Controller
(2).6mm/12mm Molybdenum Disilicide (MoSi2) Heating Elements
(3).Double Shell Design to Ensure Low Outside Furnace Temperature
(4).Auto power shut down when temperature exceeds max set temperature
(5).Control Console Displays Power Output, Working Voltage and Current
(6).Long Life B Type Thermocouple
(7).High Temperature Sealing Rubber sheet
(8).Stainless steel Sealing plate
(9).Worm Gear Clamp
(10).Set of Fasteners
(11).Vacuum and process gas connection nozzle
(12).One Year Limited Warranty on All Electronic Parts
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
2.Technical parameters of Lab tube furnace temperature up to 1800C
| Chamber Size | Φ60x300mm (2.5"x12") |
| Working Temperature | 1700¡æ |
| Maximum Temperature | 1800¡æ |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15¡æ/min (suggestion: ≤10¡æ) |
| Temperature Accuracy | +/-1¡æ |
| Heating Element | Molybdenum Disilicide (MoSi2) |
| Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power | 5KW |
| Net Weight | 130 Kg |
3.Applications of Lab tube furnace temperature up to 1800C
Lab tube furnace temperature up to 1800C is mainly used in the research requiring high temperature and high pressure and the hi-temperature and hi-pressure can be accurately controlled. It is widely used in synthesis of the new material and quick sintering of the workpiece, such as, Piezoelectric ceramics, superconducting materials, magnetic materials, ferroelectric superhard materials.
