What is a CVD chemical vapor deposition system?

Time:2024-01-22 14:00

Chemical vapor deposition (CVD) is a method of depositing solid deposits at gas or gas-solid interfaces through chemical reactions using gaseous or vapor chemical substances. CVD technology is widely used in fields such as material preparation, surface treatment, and thin film growth.

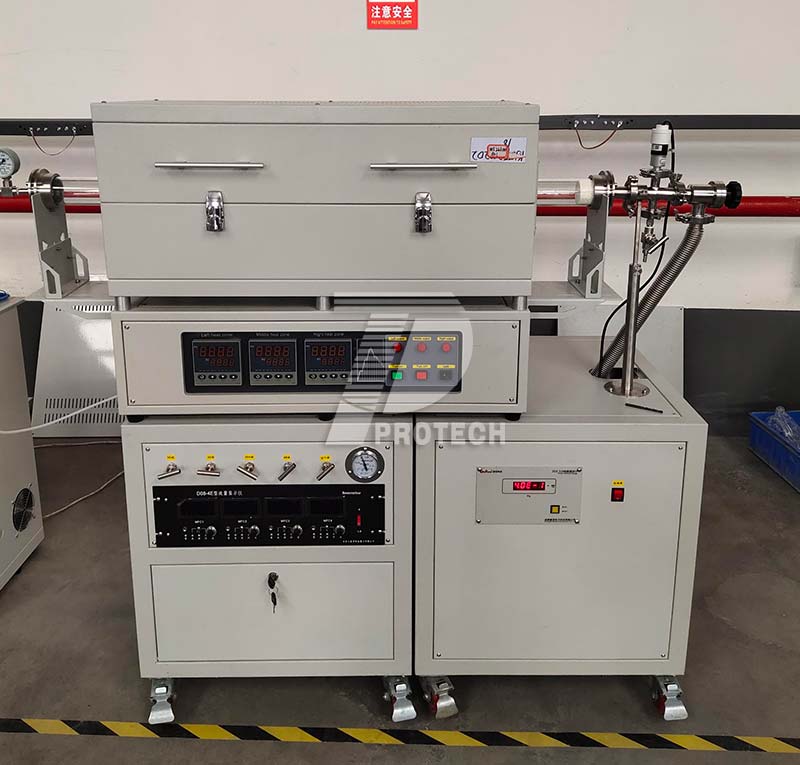

Various models of CVD chemical vapor deposition equipment (click on the image link to view more CVD)

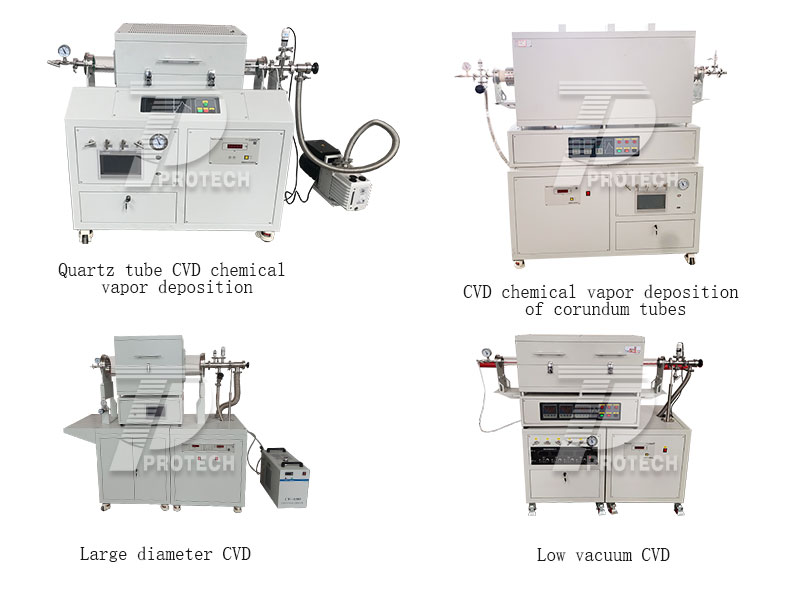

Various models of CVD chemical vapor deposition equipment (click on the image link to view more CVD)

CVD technology can be used to prepare single crystal, polycrystalline, or amorphous materials of various materials, including silicon, carbides, nitrides, oxides, etc. These materials can be used to manufacture integrated circuits, electronic devices, optical devices, sensors, etc. It is a technology widely used in the preparation of thin films, coatings, and materials, which deposits substances onto solid surfaces through intermediates produced by chemical reactions in the gas phase.

1.The process of CVD equipment:

① Substrate preparation: A substrate is the target surface of a coated or deposited material, usually a metal, ceramic, or semiconductor material.
② Gas phase precursor supply: Gas phase precursors are gases or vapors that participate in chemical reactions to form thin films, which are introduced into the reaction chamber.
③ Pyrolysis: In the reaction chamber, gas-phase precursors undergo pyrolysis (decomposition) or other chemical reactions to produce active intermediates, such as free radicals, ions, etc.
④ Sedimentation: Intermediates deposit onto the substrate surface to form the desired thin film or coating.
⑤ Control and monitoring: Accurate control and monitoring of temperature, gas flow rate, pressure and other parameters are required during the process to ensure the quality and uniformity of the film.

Low vacuum CVD system
Low vacuum CVD system

2.CVD application areas:

① Semiconductor manufacturing: used for depositing thin films such as silicon oxides and silicon nitride, manufacturing integrated circuits and other semiconductor devices.
② Coating technology: used for preparing anti reflective films, hard coatings, anti-corrosion coatings, etc., widely used in the fields of optics, electronics, and machinery.
③ Solar cells: used for depositing photovoltaic thin films, such as amorphous silicon, copper indium gallium selenium, etc., for the preparation of solar cells.
④ Ceramic preparation: Used for preparing ceramic thin films, such as boron nitride, silicon carbide, etc., widely used in the ceramic industry.
⑤ Metal coating: used for preparing metal films such as chromium, nickel, copper, etc., applied in electroplating and corrosion prevention fields.

3.Advantages and characteristics of CVD products:

① Uniformity: CVD can uniformly deposit thin films on large-area substrates, ensuring that the prepared films have consistent performance.
② Controllability: The CVD process has a high degree of controllability and can achieve precise control of film properties by adjusting process parameters.
③ High quality: Thin films prepared by CVD usually have high quality, good surface smoothness and density.
④ Wide applicability: CVD can be used for the preparation of various materials, including metals, semiconductors, ceramics, etc.
⑤ Mass production: CVD is suitable for mass production and has high production efficiency.

4、 What precautions should be taken when using CVD equipment:

① High temperature treatment: CVD typically requires higher temperatures, which may pose challenges for some temperature sensitive substrates and materials.
② Selection of gas-phase precursors: Different gas-phase precursors determine the properties of deposited films, and selecting the appropriate gas-phase precursor is crucial for the functionality of the film.
③ Equipment complexity: CVD systems are usually complex and require professional operation and maintenance.

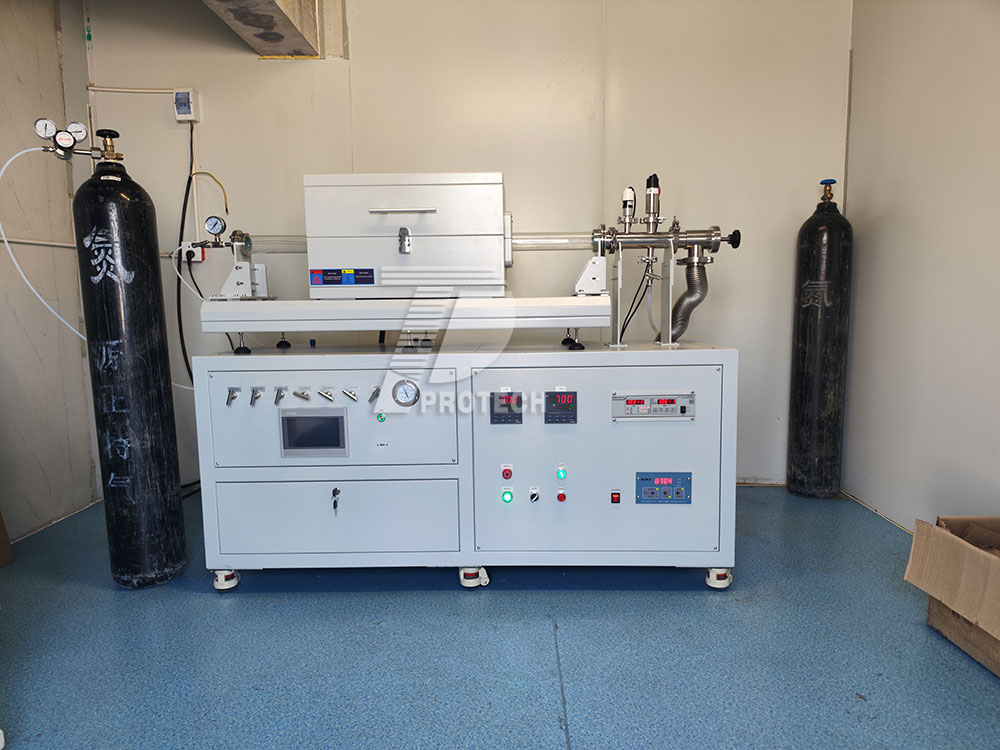

Customer real-life photos of CVD system
Customer real-life photos of CVD system

5、 Summary:

The application range of CVD technology is very wide. In addition to its application in the fields of microelectronics and optoelectronics, it can also be used to prepare biomaterials, ceramic materials, composite materials, etc. Meanwhile, CVD technology can also be used for surface treatment and modification, such as coating, coating, etching, etc.

CVD technology is a very important material preparation and surface treatment technology, with broad application prospects and development potential. Click to view more CVD devices. If you want to learn more about other products, please click to consult our online customer service!
