Box type resistance furnace is a common heating equipment widely used in laboratories, industrial production, and scientific research fields. It utilizes the principle of resistance heating to convert electrical energy into thermal energy, thereby heating and melting materials. It is used in high-temperature heat treatment equipment with a sealed furnace chamber, suitable for heating treatment of various metal and non-metal materials.

The structure of box type resistance furnace

1.The structure of a box type resistance furnace:

① Furnace cavity structure: Box type resistance furnaces are usually composed of a sturdy metal shell with a furnace cavity inside. The size and shape of the furnace cavity can be customized according to the requirements of heating the workpiece.
② Resistance wire: A resistance wire or electric heating element is installed in the furnace chamber, which heats up the resistance wire and generates high temperature through electrification. Resistance wires are usually made of high resistance alloys to ensure stability at high temperatures.
③ Control system: The box type resistance furnace is equipped with an advanced temperature control system, which can accurately control the temperature inside the furnace chamber. These systems typically include temperature sensors, controllers, and heating elements.
④ Insulation material: Aluminum oxide fiber insulation material is used on the inner wall of the furnace chamber to reduce energy loss and ensure uniform temperature distribution inside the furnace chamber.

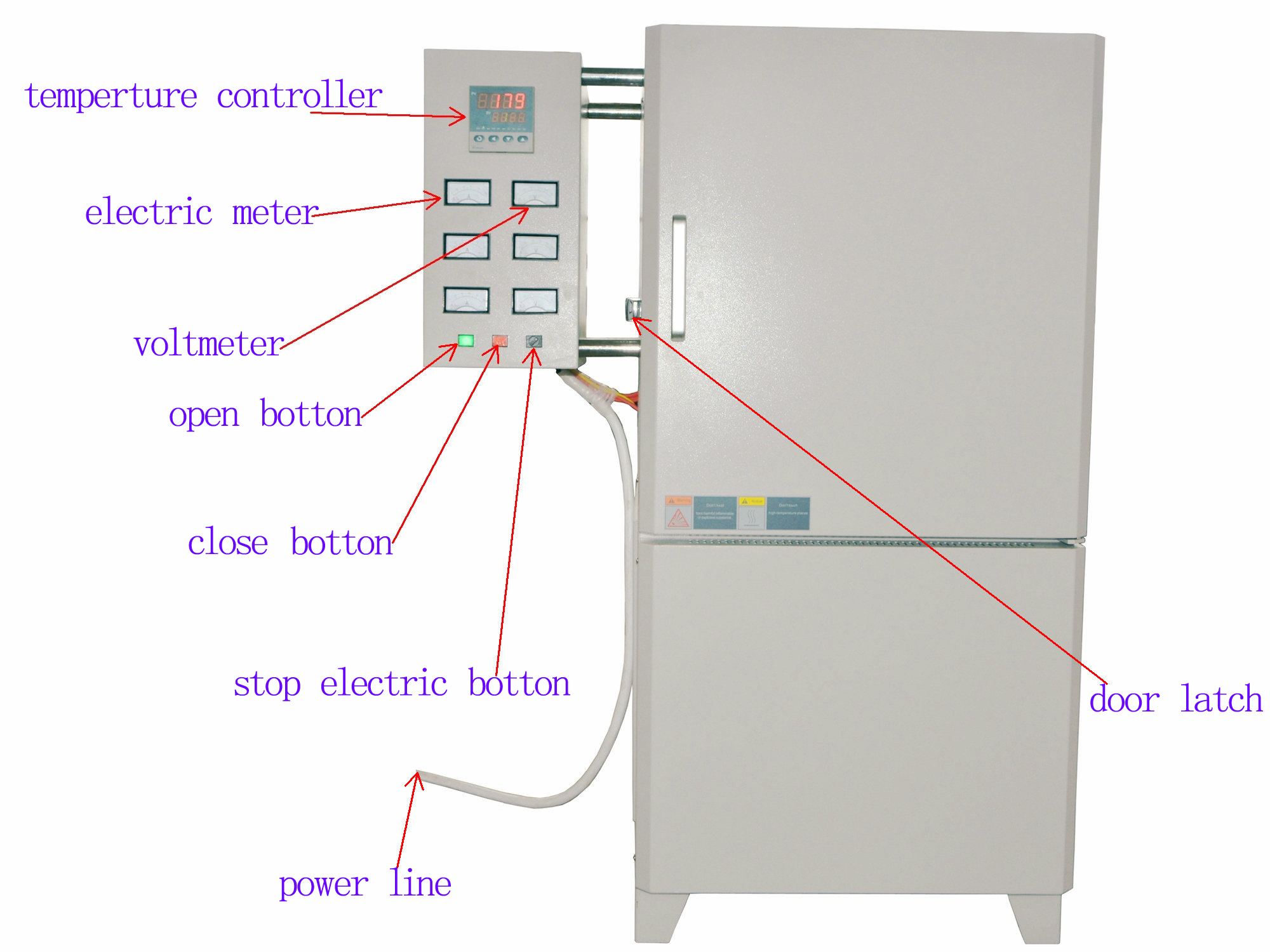

Experimental mini box type resistance furnace(Click on the image to view product details)

2. The main application areas of box furnaces are:

① Metal heat treatment: Box type resistance furnaces are widely used in metal heat treatment processes, such as quenching, tempering, annealing, etc., to change the structure and properties of metals.
② Glass processing: used for glass processing processes, such as glass thermal bending, glass melting, etc.
③ Ceramic sintering: Suitable for the sintering process of ceramic materials, ensuring the density and strength of ceramic products.
④ Laboratory applications: In laboratory environments, box type resistance furnaces are used for various experiments, sample preparation, and research.
⑤ Electronic component production: used for the manufacturing of electronic components, such as resistors, capacitors, etc.

laboratory Ashing furnaces(Click on the image to view product details)

3. The advantages and characteristics of box type resistance furnaces:

① High temperature stability: Box type resistance furnaces can provide a high-temperature stable environment, suitable for materials that require high-temperature heating treatment.
② Customization: The size and shape of the furnace chamber can be customized according to specific process requirements to adapt to different shapes and sizes of workpieces.
③ Accurate temperature control: The advanced temperature control system ensures precise control of the temperature inside the furnace chamber, meeting various heat treatment requirements.
④ Multifunctionality: Box type resistance furnaces can be used in various processes and are suitable for heating treatment of different materials.
⑤ Good sealing: The furnace chamber has good sealing and can provide an inert atmosphere or vacuum environment, suitable for some processes that require high atmosphere requirements.
⑥ Simple structure: The entire furnace body has a simple structure, which is convenient for later maintenance and replacement of accessories, and the price is also relatively low.
⑦ Digital display: The furnace temperature is constantly detected and the current temperature is displayed in real time, making it more convenient to control the temperature of material heat treatment.

4. What should be noted during the use of a box type resistance furnace:

① Use and maintenance: It is necessary to follow the manufacturer's instructions for correct operation and regular maintenance to ensure the normal operation of the equipment.
② Safety: Attention should be paid to safety during high-temperature operation. Users should be familiar with the safety regulations of the furnace and take necessary safety measures.

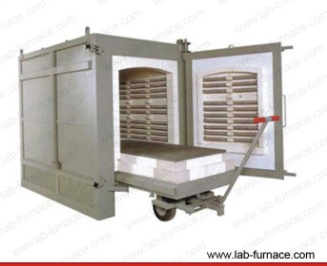

Industrial box type resistance furnace with trolley(Click on the image to view product details)

5. Summary:

Box type resistance furnace is a flexible, reliable, and efficient high-temperature heat treatment equipment widely used in industrial manufacturing, laboratory research, and material processing, providing important support for scientific research and industrial production. Click to view more box type resistance furnaces! Or click to consult online customer service for more product content!
